Product Details:
|
| Laser Head: | Double Laser |
|---|

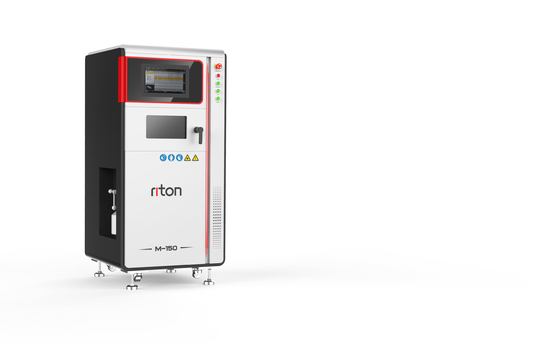

M-150D RITON DUAL LASER PRINTER
High Speed Digital Scanner
Laser Source : 500W*2 fiber Laser
250pcs crowns in 2.5 hours
17 partial frameworks in 3.5 hours
printing plate: dia150*120mm
Machine dimension :790*1010*1670mm
One full set will provided .
One-stop shopping, easy to use. Welcome to contact us at any time.
This model is developed from DUAL-150. In order to adapt to the site and space limitations of the denture laboratory, the company developed this product. It occupies a smaller area and is lighter. It is also easy to install and use in some high-rise buildings with limited load-bearing capacity. It greatly facilitates the production activities of the denture laboratory.
Introduction to RITON Dual Laser Metal Printer
RITON Dual Laser Metal Printer is a highly innovative and efficient device in the field of metal 3D printing under Guangzhou Ruitong 3D Technology Co., Ltd. Guangzhou Ruitong 3D was founded in 1997. As a high-tech enterprise focusing on laser technology, 3D printing, and digital dental innovation, it has more than 28 years of experience in laser equipment production. It is the first company in China to apply metal 3D printing technology to the dental industry and occupies an important position in the industry.
Printing Technology Principle
The printer uses advanced selective laser melting (SLM) technology, which is a type of powder bed fusion (PBF) process. When working, the scraper first spreads a uniform layer of metal powder on the base plate of the forming cylinder, and then the dual laser beams selectively melt the powder according to the cross-sectional contours of each layer of the part to complete the processing of the current layer. After one layer is sintered, the lifting system drops a cross-sectional layer height, and the powder roller spreads powder again, repeating the sintering steps, accumulating layer by layer until the entire part is printed. The entire molding process is carried out in a processing chamber that is evacuated or filled with protective gas, which effectively prevents the metal from reacting with other gases at high temperatures and ensures printing quality.
Key technical advantages
Dual laser configuration improves efficiency: Taking this type of model using red and green dual laser technology as an example, the power of the infrared laser and the green laser are both 500W. The simultaneous operation of the dual lasers greatly improves the printing efficiency. The galvanometer scanning speed can reach up to 10m/s. Compared with a single laser printer, it can greatly shorten the printing cycle and meet the needs of mass production.
High-precision printing: RITON dual laser metal printers have excellent precision performance. For example, the spot size of some models can be controlled within 50-80um, the dimensional accuracy can reach ±0.05mm, and the minimum resolvable structural feature is 0.2mm, which can meet the application scenarios with extremely high requirements for part precision, such as precision parts manufacturing in aerospace, medical equipment and other fields.
Wide material adaptability: It can print a variety of metal materials, including but not limited to stainless steel (such as 316L), titanium alloy (such as TC4), high-temperature alloy (such as IN718), cobalt-chromium alloy and high-strength pure titanium (ultimate strength can reach more than 850mpa, yield strength more than 700mpa), etc. Whether it is a single material or a multi-component metal powder, it can be well applied, providing a rich material selection for different industries.
Equipment structure and functional design
Reasonable planning of molding space: For the M150D model, its build space is 150×150×110mm (5.91×5.91×4.33in), and the corresponding build volume is 2.48L. This size design takes into account the printing needs of most small and medium-sized metal parts and realizes efficient printing operations in a limited equipment space.
Intelligent automation function: It has fully automatic typesetting and path planning functions, which is easy to operate, reduces the technical threshold of operators, and improves work efficiency. At the same time, it supports online transmission of printing data, breaks the distance limit, and realizes remote operation and monitoring.
Safety and stability design: The equipment is protected by argon, nitrogen and other gases, and cooperates with the water cooling system and the dryer inside the equipment to ensure the safety and stability of the printing process. Some models also support the function of power-off continuation to avoid the waste of materials and time caused by sudden power outages.
Application field

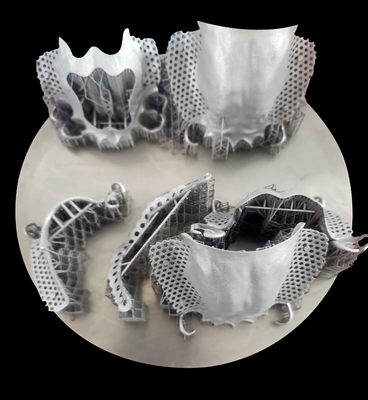

Dental industry: As one of the standard setting units for oral 3D printing industry, RITON printers are widely used in the dental field. There are more than 1,500 Riton metal 3D printers serving the dental industry worldwide, and they have established in-depth cooperative relations with nearly 2,000 dental laboratories and are exported to more than 50 countries around the world. It can be used to make high-precision crowns, bridges, implant bases, orthodontic removable appliances and other dental restorations and instruments to meet dental clinical and processing needs.
Aerospace field: It can print key parts such as turbine blades and engine components. Taking advantage of its high-precision and high-strength printing advantages, it can manufacture parts that meet the strict standards of aerospace and improve aircraft performance and safety.
Automobile manufacturing field: suitable for manufacturing automobile transmission parts, body structural parts, etc. 3D printing can achieve lightweight design and complex structure manufacturing, optimize automobile performance and reduce production costs.
Precision instrument field: It can print precision instrument parts such as sensors and actuators, meet the strict requirements of part size accuracy, surface quality and material properties, and help the development of precision instrument manufacturing industry.
RITON dual laser metal printer provides efficient, accurate and flexible solutions for metal parts manufacturing in many industries with advanced technology, excellent performance and a wide range of applications, pushing the manufacturing industry to a higher level.
